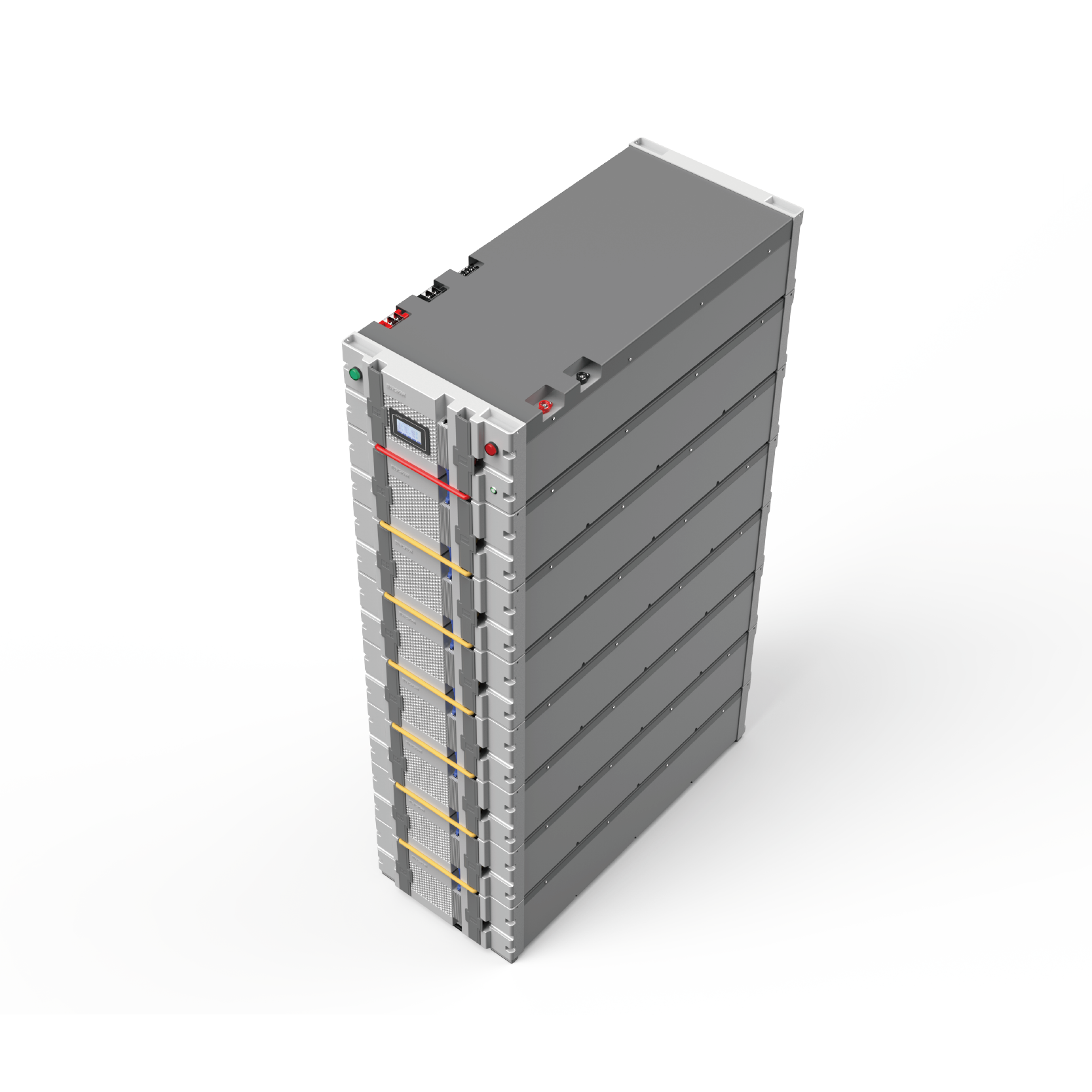

High Voltage Energy Storage System
Core function:

In areas without electricity, battery can be charged by solar panel in daytime, and supply energy at night; In areas where electricity is expensive, it can be charged in electricity valley, and used at electricity peaks; It is fully matched to various scenes such as small industrial and commercial roofs, factories, schools, agriculture, and fisheries. This product does not need wire embedding, easy to install, energy saving and environmental protection, save electricity costs, and have a long life span.


Core advantage:
BMS Protection System
High Quality Aluminium Magnesium Alloy
Integrated Packaging
LiFePO4 Battery

向阳而为  让生活更加美好

新一代电池技术  持续引领光伏产业变革


Parameter
Other details
Name
Parameter
Nominal Capacity
300Ah
Nominal Voltage
380V
Electricity(kWh)
102.6kWh
Battery Charging Current
50A
Maximum Withstand Voltage
800V
Input Voltage Range
480V-640V
AC Output
220V/10kW
AC Output Frequency
50Hz
